operating Weight 9480kg
Loader Bucket 1.1m3, Backhoe 0.2m3
2. Reliable Perkins engine and Carraro wet axles. Power assisted service brakes reduces fatigue. Frame designed for high resistance and efficient load distribution ensuring longer life.
3. Easy engine access, convenient placement of key parts and fluid refill points.
4. Tandem gear pump enables fine grading and has flow control via dashboard switch. Meets EU stage IIIA/EPA tier 3 emission standards.
|

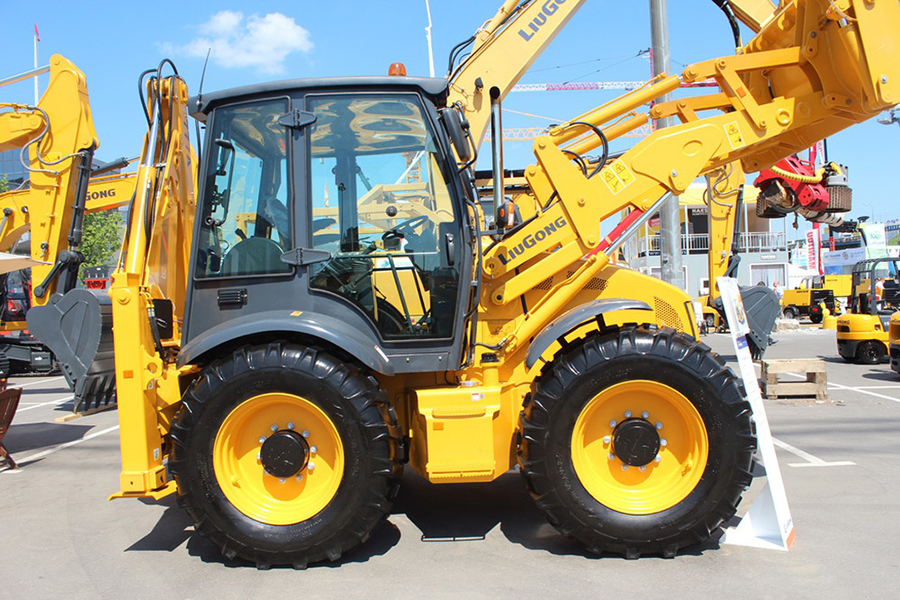

Backhoe Loader CLG777A-S |
Tier 3/Stage IIIA |
|
Gross Power |
74.5 kW (101 hp) @ 2200 rpm |
|
Net Power |
72 kW (98 hp) @ 2200 rpm |
|
Operating Weight |
9480 kg |
|
Maximum Digging Depth |
4308 / 5371 mm |
|
Speed |
6.6~41 km/h |
|
Turning Radius Outside of Front Tire w/o single braking |
4075 mm |
|
Turning Radius Outside of Bucket w/o single braking |
4850 mm |
|
Bucket Breakout Force, General bucket |
59.6 kN |
|
Bucket Digging Force |
58.2 kN |
|
Maximum Dump Height (Loading) |
2746 mm |
|
Loading Height (Digging) |
3554 mm |
|
Engine Model |
Perkins 1104D-44TA |
|
Emission Standard |
Tier 3/Stage IIIA |
|
Standard Bucket Heaped Capacity |
1.1 m³ |
|
Standard Backhoe Bucket Heaped Capacity |
0.2 m³ |
