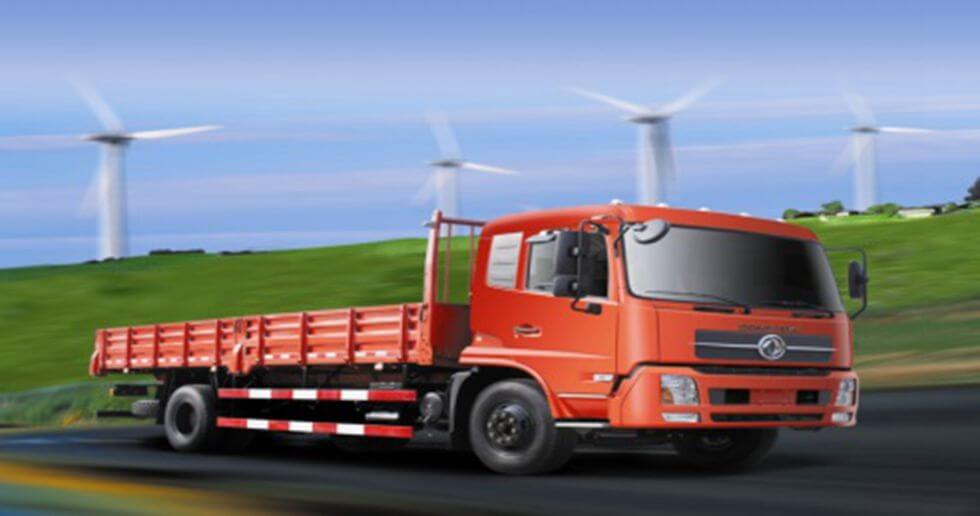

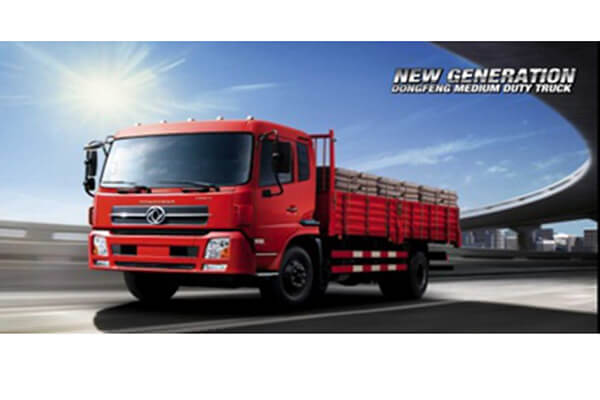

Product Name

DFL1140B-KD5E-000-012J

Type

4×2  flated truck

Chassis Dimensions(mm)

Overall chassis length

8790

Cab width

2370

Cab height (unladen)

2760

Wheel base

5000

vehicle weights(kg)

G.V.W

14000

Curb weight(chassis)

5300

Frame profile Dimensions(mm)

Section height

250

Section width

80

Section thick

7+4

Engine

Type

Cummins B190 33

Emission level

Euro 2(EGR)

Maximum power

140 Kw at 2500 rpm

Maximum torque

670N.m at 1300 -1500rpm

Number of cylinders

6

Displacement (lit)

5.9

Cylinder bore (mm)

102

Stroke (mm)

120

System

Straight, turbocharged after cooled, mechanical fuel pump, built-in EGR

Clutch

Type

china

Plate's diameter

¢395mm

operating system

Push type diaphragm spring clutch

Gear box

Type

DF6S900

No. of gears

6 forward gears & 1 reverse

Gear ratios

7.967；4.589；2.664；1.579；1.0；0.875；7.105R

Cab

Semi floating cab rear suspension, hydraulic mechanical turnover, a hand-operated lifter, manual door lock, channel type instrument panel, air conditioning.

Load capacity(ton)

6T

Rear

First grade speed ratio of 6.938, the high-end into overdrive, 10T single stage deceleration rear axle, the main speed reduction ratio of 5.286, no wheel differential lock

Load capacity(ton)

10T

Tyres

10.00R20

Suspension

Front

8- Leaf spring with  shock absorber

Rear

(10+8)-leaf spring

Fuel  tank

Type

Steel fuel tank

Capacity

160L

Cargo Dimension

6600*2300*600mm
