Product Name

DFH3330AJ80-K22R-931-012J

Type

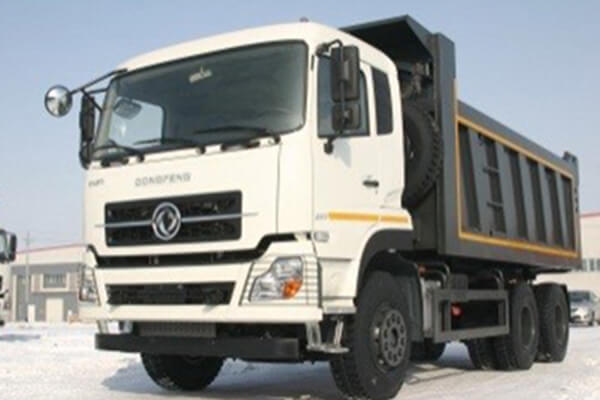

6×4 dumper

Chassis Dimensions (mm)

Overall chassis length

7650

Cab width

2500

Cab height (unladen)

3140

Wheel base

3800+1450

Front over hang

1500

Rear over hang

1000

Maximum velocity (Km/h)

90

Chassis weights (kg)

G.V.W

25000

Curb weight(chassis)

9500

Frame profile Dimensions (mm)

Frame width (front)

940

Frame width (rear)

860

Profile height

300

Profile width

90

Engine

Type

Dongfeng Cummins ISLe340 50

Emission level

Euro V

Max.power

250kw/2100rpm

Max.torque

1500Nm at 1400rpm

Number of cylinders

6

Displacement (lit)

8.9

Cylinder bore (mm)

114

Stroke (mm)

144.5

System

Water cooled,turbocharged,after cooled, direct injection, High pressure common rail fuel system, heating for starting.

Clutch

Type

SACHS

Plate's diameter

¢430mm

System

Hydraulic control with air booster, pulling

Gear box

Type

12JS180T DD

No. of gears

12forward gears & 2reverse ,synchronized

Gear ratios

15.53,12.08,9.39,7.33,5.73,4.46,3.48,2.71,2.10,1.64,1.28,1.00,14.86R1,3.33R2

Brake System

Full air brake system, split pneumatic circuit , parking spring brake acting on rear axles , exhaustbrake,ABS.

Cab

Sleeper cab,forward control type,low roof, new face, all welded steel cab of tilt type,antirust covering.Mechanical driver's seat, wind shield wiper and washer, rear mechanical cab suspension.
D310. Option: electrical cab tilting,air conditioning system, electric windows, central lock.

Axle

Front

Elliot type, I beam section

Load capacity(ton)

7

Rear

Double reduction, tandem axle, with axle lock and wheel lock, ratio 5.92.

Load capacity(ton)

13

Tyres

12.00R20

Suspension

Front

10-leaf spring with shock absorber

Rear

12-leaf spring

Battery

Voltage (V)

24

Battery capacity (A.h)

180X2

Fuel

Type

Steel fuel tank, with lockable cap

Capacity

400lit

Option

SCR pipe heater. Cabin heater, VDO tachogragh, front protection.

Body

Modified configuration :5600mmx2300mmx1500mm, thickness: side 6mm, bottom 8mm, normal steel, rectangle box body, cylinder position and diameter: front, 160
