Products Technical Specification

Product Name :

DFL1120B-KD1E-010-022J

Type  :

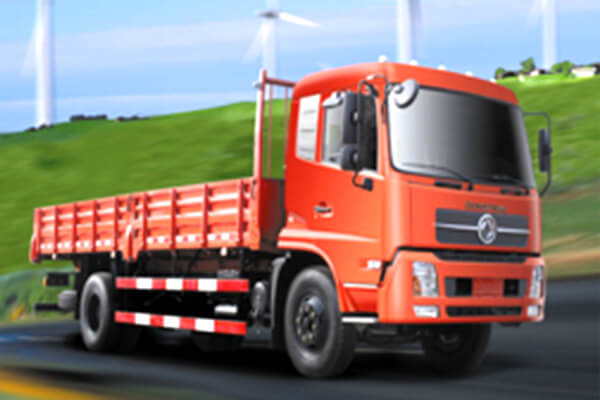

4x2 Cargo chassis

Chassis Dimensions(mm)

Overall chassis length

8250

Cab width

2273

Cab height (unladen)

2760

Wheel base

4700

Front over hang

1430

Rear over hang

2120

Maximum velocity (Km/h)

109

Maximum gradeability

30%

Chassis weights (kg)

G.V.W

12495

Curb weight(chassis)

4600

Design Carring Weight

15000

Frame profile Dimensions(mm)

Frame width (front )

860

Frame width ( rear )

860

Profile height

250

Profile width

80

Engine

Type

Dongfeng Cummins B170 33

Emission level

Euro 2+EGR

Max.power

125KW at 2500rpm

Max.torque

560N.m at 1300rpm

Number of cylinders

6

Displacement (lit)

5.9

Cylinder bore (mm)

102

Stroke (mm)

120

System

Water cooled,turbocharged,after cooled ,direct injection.

Clutch

Type

CHINA

Plate's diameter

¢395mm

System

Hydraulic control with air booster, pushing

Gear box

Type

Dongfeng    DF6S900

No. of gears

6 forward gears & 1 reverse

Gear ratios

7.967；4.589；2.664；1.579；1.0；0.875；7.105(R)

Brake System

Full air brake system, split pneumatic circuit , parking spring brake acting on rear axles , exhaust brake.

Cab

Kingrun one and a half row cab ,forward control type , all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension , adjustable driver seat,Air Conditioner ,manual window、manual lock

Axle

Front

Elliot type, I beam section

Load capacity(ton)

Rear

Single reduction , ratio 5.286

Load capacity(ton)

Tyres

9.00R20

Suspension

Front

7- Leaf spring ,with shock absorber

Rear

9+6-leaf spring

Battery

Voltage (V)

Battery capacity (A.h)

Fuel tank

Type

Steel fuel tank

Capacity

160lit
