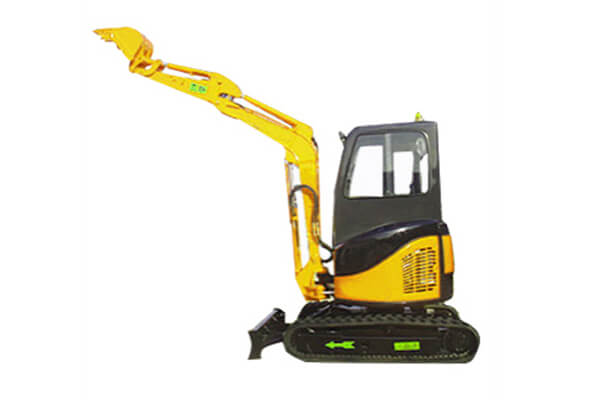

MINI EXCAVATOR VSE30
Machine Weight:3200KG
Engine power:19.8KW
Bucket width: 0.10m³
Engine power:19.8KW
Bucket width: 0.10m³
| Working Range | |
| Boom length | 2281mm |
| Arm length | 1170mm |
| Max.digging reach | 4791mm |
| Max.digging depth | 2706mm |
| Max.digging height | 4278mm |
| Max.dump height | 2988mm |
| Min.swing radius | 2130mm |
| Tail swing radius | 800mm |
| Max.digging reach on ground | 4642mm |
| Max.vertical digging depth | 2575mm |
| Performance paraneter | |
| Machine weight | 3200kg |
| Engine power | 19.8kw |
| Hydraulic system work pressure | 20mpa |
| Slewing speed | 10rpm |
| Travel speed | 0~4km/h |
| Bucket digging force | 17.8kn |
| Arm digging force | 13.4kn |
| Gradeability | <30° |
| Ground pressure | 29kpa |
| Overall Dimensions | |
| Total height | 1550mm |
| Total width | 2685mm |
| Total length | 4460mm |
| Total length | 255mm |
| Track length on ground | 2125mm |
| Track width | 300mm |
| Bucket width | 0.10m³ |
