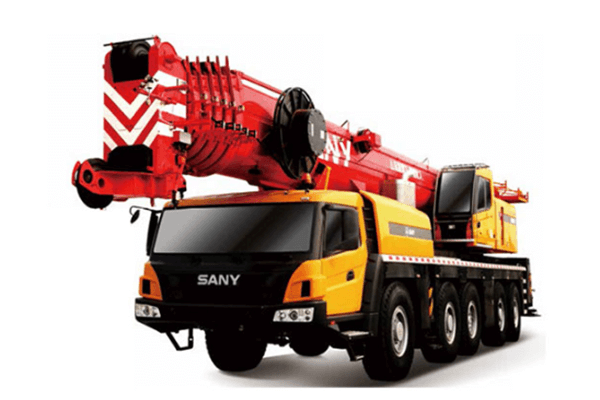

Boom Length: 63m
Overall Weight: 50000kg
· Efficient Power System
· Single-engine power system is adopted, providing power for superstructure through mechanical transmission, highly reliable with low fuel consumption and easy maintenance.
· Outstanding Lifting Capacity
· 7 sections boom, with max. boom length of 63m and jib length of 33.5m;
· Max. lifting torque: 4320kN·m.
· Mobile and Flexible Carrier
· Total crane width of 2.8m, 5-axle all terrain carrier. The carrier is mobile and flexible with good traveling passing performance.
· Safe Control System
· Comprehensive intelligent control system and fault diagnosis system monitor and feedback data in real-time.
· Energy-saving Hydraulic System
·Dual pump converging / diverging intelligent speed regulation technology is adopted. With graded control of speed and electric proportional pump displacement, it saves energy up to 20%.
|
Capacity |
Max. lifting capacity |
100t |
|
Dimensions |
Overall length |
14000mm |
|
Overall width |
2800mm |
|
|
Overall height |
4000mm |
|
|
Axles |
5 |
|
|
Weight |
Overall weight |
50000 kg |
|
Front axle load |
20000 kg |
|
|
Rear axle load |
30000 kg |
|
|
Engine |
Rated power |
350 kw / 1800 rpm |
|
Rated torque |
2300 N·m/1080 rpm |
|
|
Traveling |
Max. traveling speed |
90 km/h |
|
Min.turning radius |
8.5 m |
|
|
Min. ground clearance |
300mm |
|
|
Approach angle |
21° |
|
|
Departure angle |
21° |
|
|
Braking distance(30km/h) |
10 m |
|
|
Max. gradeability |
60 % |
|
|
Main Performance |
Min.lifting radius |
3m |
|
Tail swing radius of superstructure |
4450 mm |
|
|
Boom section |
7 |
|
|
Max. lifting moment-Base boom |
4320 kN.m |
|
|
Max. lifting moment-Full-extend boom |
1852 kN.m |
|
|
Max. lifting moment-Full-extend boom+jib |
1320 kN.m |
|
|
Length-Base boom |
12.1 m |
|
|
Length-Full-extend boom |
63 m |
|
|
Length-Full-extend boom+jib |
78.5 m |
|
|
Outrigger span(Longitudinal/Transversal) |
7.6 m |
|
|
Jib offset |
0 ° 15 ° 30 ° |
|
|
Working Speed |
Max. single rope lifting speed of main winch(no load) |
|
|
Max. single rope lifting speed of auxiliary winch(no load) |
130 m/min |
|
|
Full extend/retract time of boom |
450 / 440 s |
|
|
Full raise/lower time of boom |
60 / 110 s |
|
|
Swing speed |
2 r/min |
|
|
Aircondition |
HVAC in low cab |
Cooling and Heating |
