- Opeartion Mass: 4ton~14ton
- Static Linear Load: 238~333N/cm

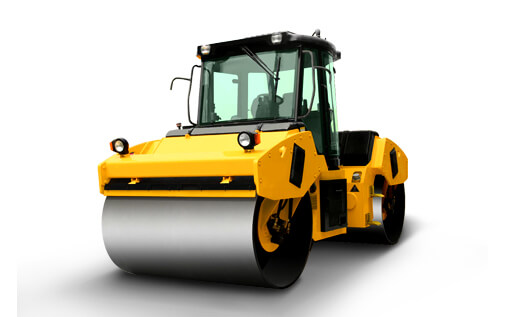

1.Full hydraulic two wheel drive and vibration.
2.Double frequency double viration system.
3.Hydrostatic center articulated steering, Optional unique crab agency.
4.Cabin with air conditooner, comfortable and spacious, the flexible steering seat facilicates the operation.
5.The driver cabin can be turned on one side as a whole, to facilitate maintenance.
6.Fork-type frame, good hold-down property.
7.Hydraulic pump and vibrating motors are of the products made by American manufacturer SAUER or German
manufacturer REXROTH.
|
MODEL |
UNIT |
VSRC214 |
VSRC210 |
|
VSRC212 |
VSRC208 |
||
|
Operating mass |
kg |
14000/12000 |
10000/8000 |
|
Front axle load |
kg |
7000/6000 |
5000/4000 |
|
Rear axle load |
kg |
7000/6000 |
5000/4000 |
|
Static linear load |
N/cm |
333/286 |
238/231 |
|
Form of frame |
|
Fork-type |
Fork-type |
|
Water tank capacity |
L |
2x600 |
2x400 |
|
Fuel tank capacity |
L |
154 |
80 |
|
Hydraulic tank capacity |
L |
65 |
65 |
|
Vibration frequency |
mm |
|
|
|
High ampl. |
|
0.8 |
0.67 |
|
Low ampl. |
|
0.4 |
0.34 |
|
Vibration frequency |
Hz |
|
|
|
High ampl. |
|
40 |
45 |
|
Low ampl. |
|
46 |
50 |
|
Centrifugal force |
kN |
|
|
|
High ampl. |
|
160x2 |
90x2 |
|
Low ampl. |
|
90x2 |
69x2 |
|
Travel speed |
Km/h |
0-12 |
0-10 |
|
Turning radius |
mm |
7000 |
6000 |
|
Grade ability |
% |
40 |
40 |
|
Steering angle |
° |
±30 |
±30 |
|
Drum diameter |
mm |
1350 |
1150 |
|
Drum width |
mm |
2100 |
1730 |
|
Transverse swing angle of the vibrating wheel |
|
±8 |
±8 |
|
Type of water spray |
mm |
Pressure |
Pressure |
|
Wheelbase |
mm |
3717 |
3217 |
|
Overall length |
mm |
5060 |
4558 |
|
Overall width |
mm |
2250 |
1840 |
|
Overall height |
mm |
3300 |
2674 |
|
Ground clearance |
mm |
324 |
258 |
|
Engine |
|
Cummins 6BT5.9 |
Cummins 4BT3.9 |
|
Engine power |
kw |
110 |
75 |
|
Engine speed |
r/min |
2300 |
2400 |
