- Opeartion Mass: 2.5~4ton
- Static Linear Load: 115~180N/cm
- Centrifugal Force: 28~32KN

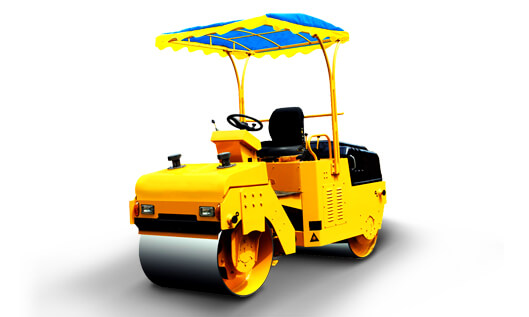

1.Mechanical movement, hydraulic vibration, hydraulic rotation, with reliable performance and optimum function/price ratio.
2.Both front and rear wheels have scraping and water spray unit.
3.Adopt ZN385Q seriesdiesel engine, very convenient for use and maintenance.
4.Compact integral structure, small volume, capable of used for compaction on narrow site.
5.VSRC3PB Rear wheel drive can choose 3 smooth tires or 2 pattern tyre combination, not only has the above characteristics, but also improves the adhesion of the drive, thereby enhancing climbing performance, meanwhile, it has double functions of steel wheel roller and tire roller, and can be used for road maintenance to improve construction quality and efficiency.
|
MODEL |
UNIT |
VSRC3PB |
VSRC4B |
VSRC3B |
VSRC2.5B |
|
Operating mass |
kg |
3000 |
4000 |
3000 |
2500 |
|
Static linear load |
N/cm |
128/174 |
140/180 |
128/172 |
115/163 |
|
Vibration frequency |
Hz |
50 |
50 |
50 |
50 |
|
Centrifugal force |
KN |
30 |
32 |
30 |
28 |
|
Travel speed |
km/h |
5.6 |
5.6 |
5.6 |
5.6 |
|
Grade ability |
% |
30 |
20 |
20 |
25 |
|
Turning speed |
mm |
4600 |
4600 |
4600 |
4600 |
|
Overall dimension |
mm |
3020X1310X2600 |
3020X1310X2600 |
3020X1310X2600 |
3020X1310X2550 |
|
Front drum width |
mm |
1000 |
1000 |
1000 |
1000 |
|
Quantity of rear smooth tire |
|
3 |
/ |
/ |
/ |
|
Specification of rear tire |
|
7.50-15 |
/ |
/ |
/ |
|
Wheel base |
mm |
2100 |
2100 |
2100 |
2100 |
|
Engine power |
kw |
21 |
21 |
22 |
23 |
|
Engine |
|
ZN385Q |
ZN385Q |
ZN385Q |
ZN385Q |
|
Water tank capacity |
L |
76 |
76 |
76 |
76 |
