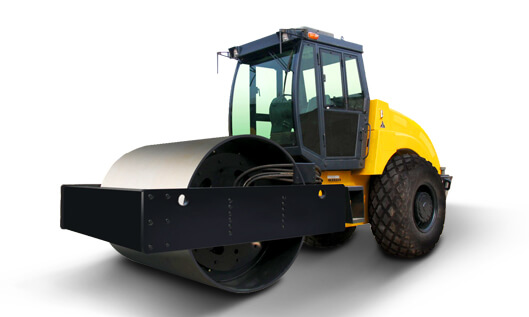

- Opeartion Mass: 10ton~16ton
- Static Linear Load: 326~428 N/cm
- Centrifugal Force: 260~320KN
1.Power System: CUMMINS B-series turbocharged diesel engine, have high coefficient of power reserve, complicable for the operating condition above 4000 meters altitude.
2.Full hydraulic, two-wheel driven, double-frequency double amplitude, articulated steering, two stepless speed changes, advanced technology; Blocking the oil supply to brake the vehicle, safe and reliable.
3.Streamline outline, circular windshield glass and curvy hood form a unique style.
4.Hydraulic pump and vibrating motors are made by the American manufacturer SAUER.
5.Equipped with removal padfoot as option.
|
MODEL |
UNIT |
VSRD216H |
VSRD214H |
VSRD212H |
VSRD210H |
|
Operating mass |
Kg |
16000 |
14000 |
12000 |
10000 |
|
Static linear load |
N/cm |
428 |
373 |
326 |
326 |
|
Vibration amplitude |
mm |
2.0/1.0 |
1.7/0.8 |
1.7/0.8 |
1.7/0.8 |
|
Vibration frequency |
Hz |
28/35 |
28/35 |
28/35 |
28/35 |
|
Centrifugal force |
kN |
320/260 |
290/180 |
260/160 |
260/160 |
|
Max. Travel speed |
km/h |
12 |
12 |
12 |
12 |
|
Grade ability |
% |
35 |
35 |
35 |
35 |
|
Turning radius |
mm |
7000 |
7000 |
7000 |
7000 |
|
Overall dimension |
mm |
6025x2280x3050 |
5900x2280x3050 |
5650x2280x3000 |
5650x2280x3000 |
|
Vibration drum width |
mm |
2100 |
2100 |
2100 |
2100 |
|
Wheelbase |
mm |
3265 |
3185 |
3060 |
3060 |
|
Min. Ground clearance |
mm |
432 |
432 |
360 |
360 |
|
Engine power |
Kw |
110 |
110 |
110 |
110 |
|
Engine |
|
CUMMINS 6BT5.9 |
|||
