- Opeartion Mass: 10ton~30ton
- The Press width: 2280mm, 2790mm
- Tyre: 4+5, 5+6

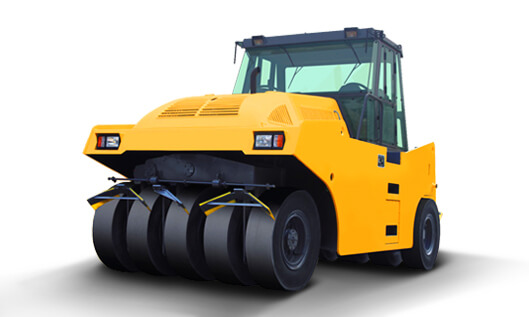

VSRP2030, VSRP1826, VSRP1016 low gravitational center designed for safe and comfortable operation.
1.VSRP2030, VSRP1826 abopt CUMMINS 6BTA diesel engine. Powerful strength, which is suitable to all environments. A Three forward speed and two backward changes. Reinforced plastic spraying box and multi-layer water filter,ensure the stability of the system.
2.With stepless speed changes VSRP2030H、VSRP1826H、VSRP1016H is easy and reliable to operate.
3.VSRP1016, VSRP1016H adopt 4BT Cummins engine, is suitable to all environments.
|
MODEL |
UNIT |
VSRP2030 |
VSRP1826 |
VSRP1016 |
VSRP2030H |
VSRP1826H |
VSRP1016H |
|
Operating mass(Unballast/Ballast) |
Kg |
20000/30000 |
18000/26000 |
10000/16000 |
20000/30000 |
18000/26000 |
10000/16000 |
|
Max. travel speed |
km/h |
20.64 |
20.64 |
14.7 |
10 |
10 |
14 |
|
Tyre quantity(Front+Back) |
|
5+6 |
5+6 |
4+5 |
5+6 |
5+6 |
4+5 |
|
Min.turning radius |
mm |
8000 |
8000 |
7500 |
8000 |
8000 |
7500 |
|
The press width |
mm |
2790 |
2790 |
2280 |
2790 |
2790 |
2280 |
|
Grade ability |
% |
30 |
30 |
30 |
30 |
30 |
30 |
|
Overall dimension |
mm |
4950x2750x3240 |
4950x2750x3240 |
4780x2100x3200 |
4950x2750x3240 |
4950x2750x3240 |
4780x2100x3200 |
|
Wheel base |
mm |
3800 |
3800 |
3700 |
3800 |
3800 |
3700 |
|
Engine power |
kW |
125 |
125 |
75 |
125 |
125 |
75 |
|
Engine |
|
6BTA5.9 |
6BTA5.9 |
4BT3.9 |
6BTA5.9 |
6BTA5.9 |
4BT3.9 |
