- Capacity : Flow≤105m3/h
- Impeller is moulded by Wear-Resistant rubber developed
- Wear index reaches 128%.
Introduction:

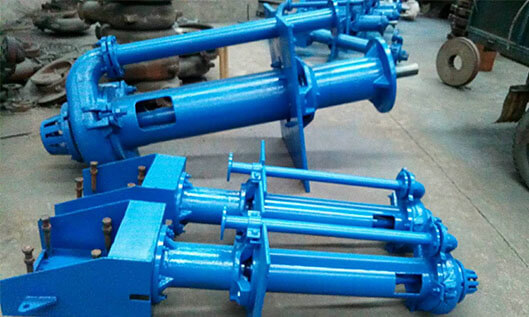

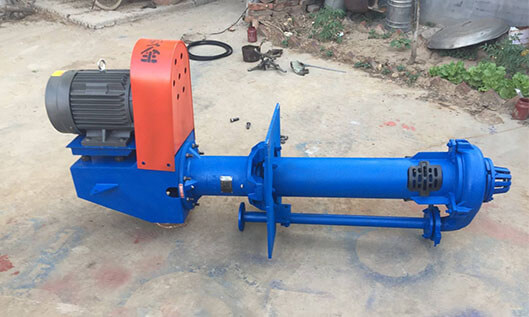

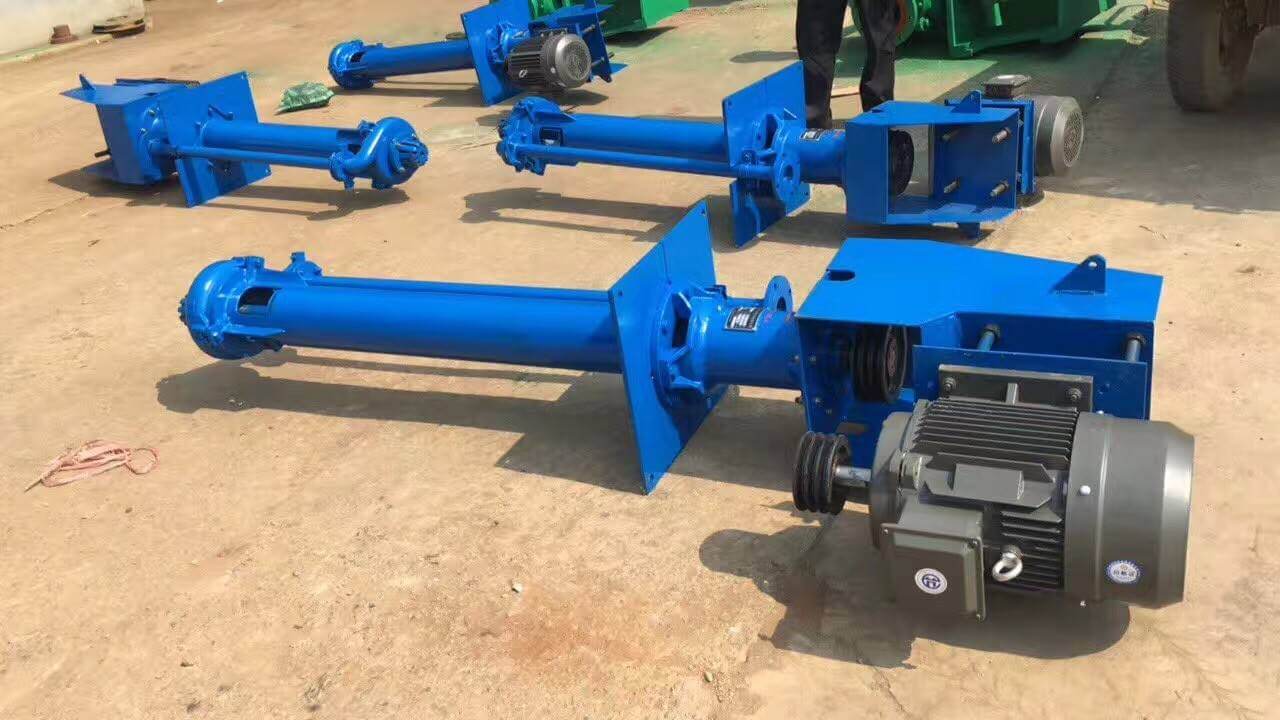

A submerged slurry pump with high wear resistance.
Capacity :
Flow≤105m3/h
Improvement:
Impeller is moulded by wear-resistant rubber developed by VOSTOSUN; wear index reaches 128%.
Advantages：
Break through the head limit (60 meters) of rubber pump, up to 70 meters
Impellers and casings lined with VOSTOSUN No. 35 high wear-resisting rubber, the life is 2-4 times longer than the life of metal pump.
The rubber slurry pump with resistance to wear and corrosion and high head
Packing sealing, simple and reliable, no leakage
It is easy to replace wet parts
Product Structure：
The main components of submerged slurry pump includes impeller, shaft, protective board, pump shell, packing box etc..
|
Specification |
Flow(m3/h) |
Head(m) |
Rotation Speed (r/min) |
Motor Maximum Power (Kw) |
Maximum Efficiency(%) |
Impeller Diameter (mm) |
Outlet Diameter (mm) |
|
40PV-SPR/XH |
17.239-39.6 |
4-26.0 |
1000-2200 |
15 |
40 |
188 |
40 |
|
60QV-SPR/XH |
25.5-105 |
5.5-30.5 |
700-1500 |
30 |
51 |
280 |
65 |
|
100RV-SPR/XH |
64.8-285 |
7.5-36 |
600-1200 |
75 |
62 |
370 |
100 |
