1. The special major institutions have superior performance, and the mechanism operates smoothly, with minimal impact, low failure rate, and safety and reliability.


2. Use a large number of high-level connectors for fault diagnosis and maintenance.

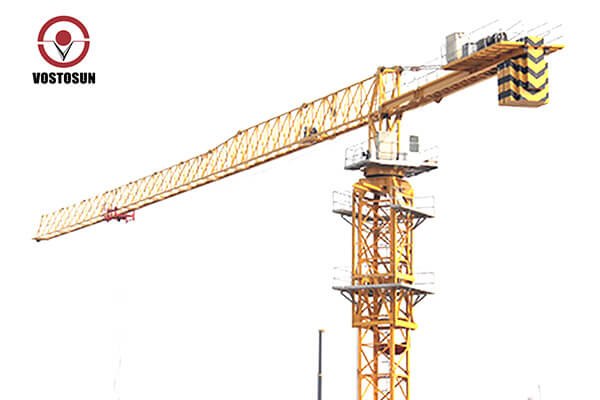

3. The configuration of high-quality safety devices with high reliability and high precision ensures the safe operation of the tower crane.


4. Four connection sleeves below the basic section. When the tower crane is in working and non-working conditions, the tower body has high strength and good stability.

XGTL200A(7015-10)
Mechanisms	Model	Speed（m/min）		Hoist Weight(t)	Rope capacity	Power(kW)
Hoist mechanism	45JLF25A	1 multiplying power	0-40	5	615M,>615M*	45
			0-60	3.5
			0-80	1.7
		2 multiplying power	0-20	10
			0-30	7
			0-40	3.5
Trolleying	4JXF4	0-58m/min				4
Slewing mechanism	JH02B/145HL120	0-0.68r/min				2X7.5
Travelling	RT	0-25m/min				4X4
Main Supply	~380V(±10%)，50Hz
Gross Power(Excluding climbing and travelling) 64kW
