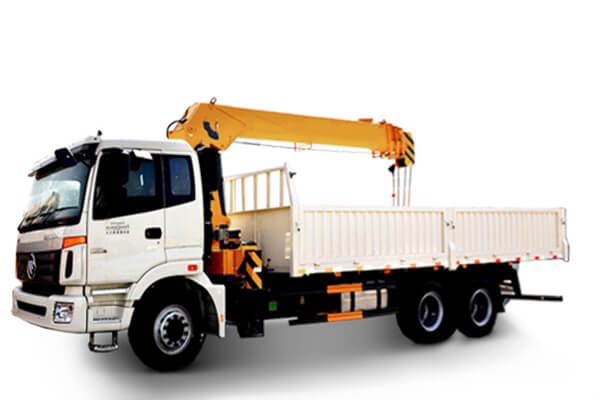

TRUCK MOUNTED CRANE WITH TELESCOPIC BOOM SQ10SK3Q
Max Lifting Moment: 25t.m
Max Lifting Capacity: 10000kg
Max Lifting Capacity: 10000kg
| Model | SQ10SK3Q | Unit | |||
| Max Lifting Capacity | 10000 | kg | |||
| Max Lifting Moment | 25 | T.M | |||
| Recommend Power | 28 | kw | |||
| Max Oil Flow of Hydraulic System | 63 | L/min | |||
| Max Pressure of Hydraulic System | 26 | MPa | |||
| Oil Tank Capacity | 160 | L | |||
| Rotation Angle | All Rotation | ||||
| Crane Weight | 3800 | kg | |||
| Installation Space | 1150 | mm | |||
| Choice of Chassis | DFL1250A9 ; CA1240PK2L7T4EA81; CA1200PK2L7T3EA80; BJ1317VNPJJ-S5; BJ5253ZKPJJ; CA1253P7K2L11T1E; EQ1252GFJ; DFL1253AX; | ||||
| SQ10SK3Q Lifting capability diagram | |||||
| Working radius (m) | 2.5 | 4.5 | 7 | 9 | 12 |
| Lifting capacity (kg) | 10000 | 5500 | 3200 | 2300 | 1500 |
