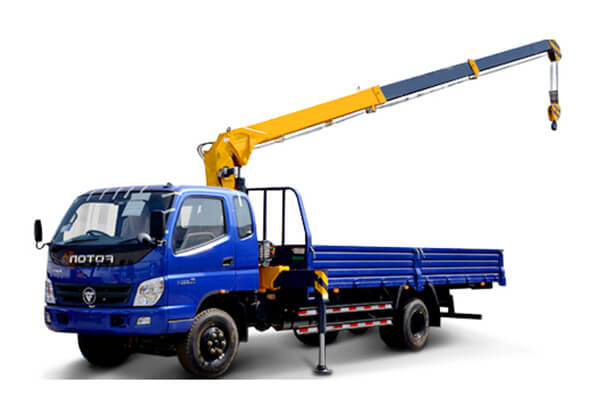

TRUCK MOUNTED CRANE WITH TELESCOPIC BOOM SQ4SK2Q
Installation Space: 850mm
Max Lifting Moment: 8.40/10t.m
Max Lifting Capacity: 4000kg
Max Lifting Moment: 8.40/10t.m
Max Lifting Capacity: 4000kg
| Model | SQ4SK2Q | Unit | ||
| Max Lifting Capacity | 4000 | kg | ||
| Max Lifting Moment | 8.40/10 | T.M | ||
| Recommend Power | 16 | kw | ||
| Max Oil Flow of Hydraulic System | 25 | L/min | ||
| Max Pressure of Hydraulic System | 20 | MPa | ||
| Oil Tank Capacity | 60 | L | ||
| Rotation Angle | All Rotation | |||
| Crane Weight | 1271/1396 | kg | ||
| Installation Space | 850 | mm | ||
| Choice of Chassis | EQ1092FJ; EQ1092FJ1; EQ1092F3GJ1; EQ1081GJ12D5; DFL1120B; LZ1120LAPT; HFC1132KR1K3; EQ5121GFJ; HFC1083K103R1D; EQ1110GLJ3; EQ1120GLJ; EQ1168TLJ; BJ1122V4PBB-A1; BJ1158VKPFK-2 | |||
| SQ4SK2Q Lifting capability diagram | ||||
| Working radius (m) | 2.1 | 2.5 | 3 | 7.93 |
| Lifting capacity (kg) | 4000 | 3120 | 2580 | 754 |
