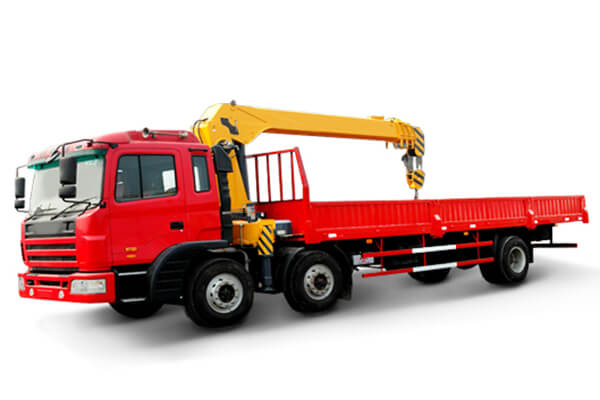

TRUCK MOUNTED CRANE WITH TELESCOPIC BOOM SQ8SK3Q
Max Lifting Moment: 20t.m
Max Lifting Capacity: 8000kg
Max Lifting Capacity: 8000kg
| Model | SQ8SK3Q | Unit | |||
| Max Lifting Capacity | 8000 | kg | |||
| Max Lifting Moment | 20 | T.M | |||
| Recommend Power | 28 | kw | |||
| Max Oil Flow of Hydraulic System | 55 | L/min | |||
| Max Pressure of Hydraulic System | 27 | MPa | |||
| Oil Tank Capacity | 160 | L | |||
| Rotation Angle | All Rotation | ||||
| Crane Weight | 3300 | kg | |||
| Installation Space | 1200 | mm | |||
| Choice of Chassis | CA1176PK2L9T3A95 ; CA1170PK2L7T3EA80; CA1240PK2L7T4EA81; HFC1202KR1K3; EQ5161GFJ7; BJ1317VNPJJ-S5; EQ5201GFJ6; CA1200PK2L7T3EA80; LZ1160LCMT; DFL1250A9; BJ5317ZNPJJ-S; CA1253P7K2L11T1E ; EQ1252GFJ; | ||||
| SQ8SK3Q Lifting capability diagram | |||||
| Working radius (m) | 2.5 | 4.5 | 7 | 9 | 11.5 |
| Lifting capacity (kg) | 8000 | 4400 | 2500 | 1750 | 1100 |
