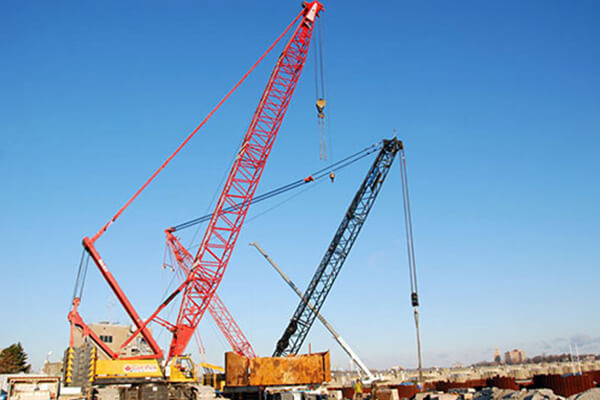

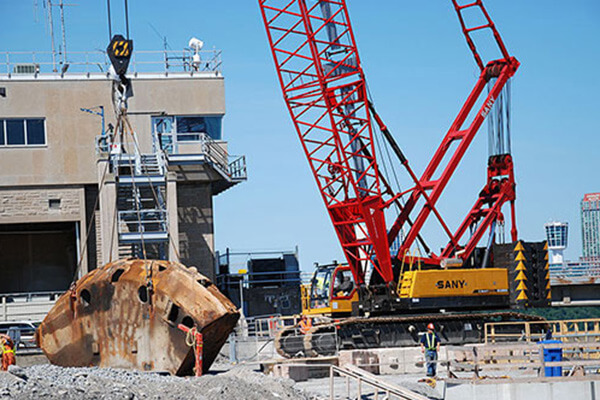

CRAWLER CRANE SCC600A
Max Lifting Capacity:60t
Max Lifting Moment:222t·m
Boom Length:52m
Max Lifting Moment:222t·m
Boom Length:52m
| Performance | Max rated lifting capacity | 60t |
| Max lifting moment | 222t*m | |
| Max rated lifting capacity with luffing jib | 12.5t | |
| Max lifting moment with fixed jib | 100.1t·m | |
| Max lifting moment with luffing jib | 10.1t×14m | |
| Boom length | 13-52m | |
| Longest (boom+fixed jib) | 43+15.25m | |
| Longest (boom+luffing jib) | 40.3＋28m | |
| Boom luffing angle | 30°-80° | |
| Fixed jib offset angle | 10° 30° | |
| Jib luffing angle | 15°-75° | |
| Speeds | Rope speed of main/auxiliary winches | 0-120 (3rd layer)m/min |
| Rope speed of boom/jib luffing winches | 0-50 (4th layer) or 72(magnetic valve connected)m/min | |
| Single rope pull | 6.5t | |
| Rope diameter | Φ20mm | |
| Travelling speed | 0-1.2km/h | |
| Slewing speed | 0-2rpm | |
| Engine | Model | ISUZU |
| Rated power | 212 kw | |
| Emissions | Euro 3 | |
| Transportation | Counterweight | 18t |
| Max transport weight of single part | 28.5(with chassis, boom base, without counterweight)t | |
| Maxtransport dimensions | 7030×3360×3304mm | |
| Average ground pressure | 0.059Mpa | |
| Average ground pressure | 0.091 Mpa |
