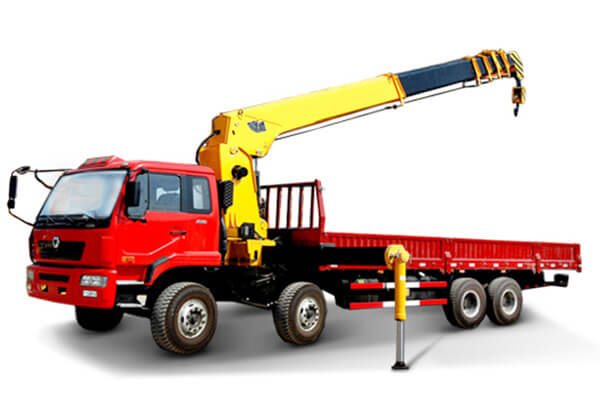

TRUCK MOUNTED CRANE WITH TELESCOPIC BOOM SQ16SK4Q
Max Lifting Moment: 40t.m
Max Lifting Capacity: 16000kg
Max Lifting Capacity: 16000kg
| Model | SQ16SK4Q | Unit | ||||
| Max Lifting Capacity | 16000 | kg | ||||
| Max Lifting Moment | 40 | T.M | ||||
| Recommend Power | 45 | kw | ||||
| Max Oil Flow of Hydraulic System | 80 | L/min | ||||
| Max Pressure of Hydraulic System | 28 | MPa | ||||
| Oil Tank Capacity | 260 | L | ||||
| Rotation Angle | All Rotation | |||||
| Crane Weight | 6020 | kg | ||||
| Installation Space | 1400 | mm | ||||
| Choice of Chassis | BJ1317VNPJJ-S5;NXG1310D3ZEX;DFL1311A3; | |||||
| SQ16SK4Q Lifting capability diagram | ||||||
| Working radius(m) | 2.7 | 5.6 | 8.5 | 11.5 | 14.5 | 18.5 |
| Lifting capacity(kg) | 16000 | 7000 | 4200 | 3200 | 2200 | 1000 |
