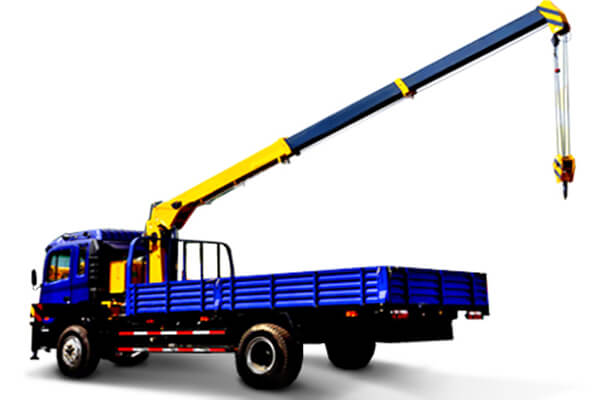

TRUCK MOUNTED CRANE WITH TELESCOPIC BOOM SQ5SK2Q
Installation Space: 900mm
Max Lifting Moment: 12.5/10t.m
Max Lifting Capacity: 5000kg
Max Lifting Moment: 12.5/10t.m
Max Lifting Capacity: 5000kg
| Model | SQ5SK2Q | Unit | |||
| Max Lifting Capacity | 5000 | kg | |||
| Max Lifting Moment | 12.5 | T.M | |||
| Recommend Power | 18 | kw | |||
| Max Oil Flow of Hydraulic System | 32 | L/min | |||
| Max Pressure of Hydraulic System | 18 | MPa | |||
| Oil Tank Capacity | 100 | L | |||
| Rotation Angle | All Rotation | ||||
| Crane Weight | 2074/2170 | kg | |||
| Installation Space | 1000 | mm | |||
| Choice of Chassis | CA1140PK2L3EA80; DFL1140B; EQ1126KJ1; HFC1132KR1K3; LZ1120LAPT; EQ1141NBJ2; EQ5201GFJ6; EQ5201GFJ6; NXG1160D3ZAL1X | ||||
| SQ2SK1Q Lifting capability diagram | |||||
| Working radius(m) | 2.5 | 3.62 | 6.05 | 8.5 | |
| Lifting capacity(kg) | 5000 | 2800 | 1500 | 1100 | |
| SQ2SK2Q Lifting capability diagram | |||||
| Working radius(m) | 2.5 | 3.62 | 6.05 | 8.5 | 11 |
| Lifting capacity(kg) | 5000 | 2800 | 1500 | 1100 | 400 |
